Analyzing a typical user study

Source: vignettes/analyzing-a-user-study.Rmd
analyzing-a-user-study.Rmd
library(colleyRstats)
#> Loading required package: ggplot2
#> Registered S3 methods overwritten by 'ggpp':
#>   method                  from
#>   heightDetails.titleGrob ggplot2
#>   widthDetails.titleGrob  ggplot2

This vignette walks through the workflow colleyRstats was built for: a within-subjects user study, from raw data to the text and figures that go into the manuscript. Every number in the paper should come out of this script – no retyping, no copy-paste drift.

The study data

Twenty-four participants experienced three interface conditions and rated their mental demand (0–100, NASA-TLX style) and trust (1–7 Likert) after each. In your project this data frame comes from your logging or survey export; here we simulate it.

set.seed(42)
n <- 24

main_df <- data.frame(
  Participant = factor(rep(seq_len(n), each = 3)),
  ConditionID = factor(rep(c("Baseline", "HUD", "LED"), times = n))
)

cond_effect <- c(Baseline = 55, HUD = 46, LED = 44)[as.character(main_df$ConditionID)]
main_df$tlx_mental <- pmin(100, pmax(0, round(cond_effect + rnorm(nrow(main_df), sd = 10))))
main_df$trust <- pmin(7, pmax(1, round(3.5 +
  (main_df$ConditionID != "Baseline") * 0.9 + rnorm(nrow(main_df), sd = 1))))

Two things matter before any analysis:

  • the participant and condition columns must be factors (they are above);
  • decide up front whether the design is within- or between-subjects – it changes the tests, the plots, and the effect sizes;
  • for a within-subjects design, every function that pairs observations takes the participant column as subject =. Paired tests compare each participant with themselves, so without it the rows would be paired by their position in the data frame – and sorting or filtering the data would change the result.

The quick route: one call per dependent variable

analyze_and_report() runs the whole per-DV pipeline: it checks the assumptions (and phrases the justification for the methods section), builds the matching ggstatsplot figure with automatic parametric/non-parametric selection, reports the omnibus test, and – for three or more groups – the significant post-hoc comparisons.

res <- analyze_and_report(
  main_df,
  dv = "tlx_mental", iv = "ConditionID",
  design = "within", subject = "Participant",
  ylab = "Mental Demand (TLX)"
)
#> A Shapiro--Wilk test on the residuals of the additive model with participant and ConditionID as factors ($n = 72$) indicated no significant deviation from normality ($W = 0.98$, $p = 0.245$); therefore, parametric tests were used.
#> An ANOVA estimation for factorial designs using 'afex' found a significant effect of \ConditionID{} on tlx\_mental (\F{1.92}{44.2}{5.75}, \p{0.007}, $\omega_{p}^{2}$ = 0.11).
#> A Student's t post-hoc test (Holm-adjusted) found that Baseline was significantly higher (\m{54.92}, \sd{11.10}) in terms of tlx\_mental compared to HUD (\m{45.88}, \sd{9.76}; \padj{0.033}).
#> A Student's t post-hoc test (Holm-adjusted) found that Baseline was significantly higher (\m{54.92}, \sd{11.10}) in terms of tlx\_mental compared to LED (\m{45.21}, \sd{12.51}; \padj{0.015}).

The result carries everything separately, so you can place the pieces where they belong:

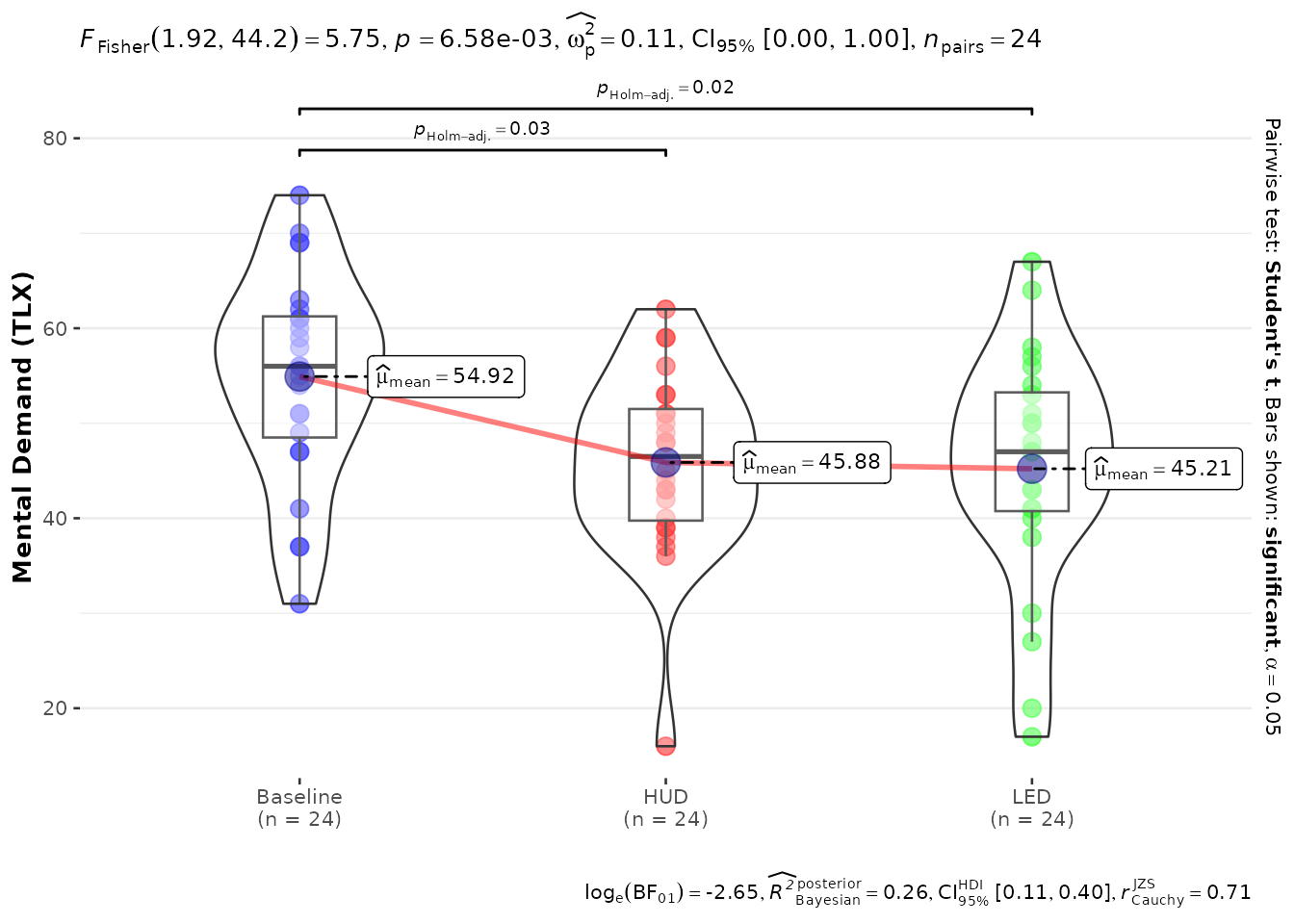

res$plot

res$methods  # for the Methods section
#> [1] "A Shapiro--Wilk test on the residuals of the additive model with participant and ConditionID as factors ($n = 72$) indicated no significant deviation from normality ($W = 0.98$, $p = 0.245$); therefore, parametric tests were used."
res$text     # the omnibus result
#> [1] "An ANOVA estimation for factorial designs using 'afex' found a significant effect of \\ConditionID{} on tlx\\_mental (\\F{1.92}{44.2}{5.75}, \\p{0.007}, $\\omega_{p}^{2}$ = 0.11). "
res$posthoc  # significant pairwise comparisons (NULL for 2 groups)
#> [1] "A Student's t post-hoc test (Holm-adjusted) found that Baseline was significantly higher (\\m{54.92}, \\sd{11.10}) in terms of tlx\\_mental compared to HUD (\\m{45.88}, \\sd{9.76}; \\padj{0.033}). "
#> [2] "A Student's t post-hoc test (Holm-adjusted) found that Baseline was significantly higher (\\m{54.92}, \\sd{11.10}) in terms of tlx\\_mental compared to LED (\\m{45.21}, \\sd{12.51}; \\padj{0.015}). "

For a whole questionnaire battery, report_all() does this for every scale and adds a Holm-corrected summary across the dependent variables:

battery <- report_all(
  main_df,
  dvs = c("tlx_mental", "trust"),
  iv = "ConditionID",
  design = "within", subject = "Participant",
  labels = c(tlx_mental = "Mental Demand", trust = "Trust")
)
#> A Shapiro--Wilk test on the residuals of the additive model with participant and ConditionID as factors ($n = 72$) indicated no significant deviation from normality ($W = 0.98$, $p = 0.245$); therefore, parametric tests were used.
#> An ANOVA estimation for factorial designs using 'afex' found a significant effect of \ConditionID{} on tlx\_mental (\F{1.92}{44.2}{5.75}, \p{0.007}, $\omega_{p}^{2}$ = 0.11).
#> A Student's t post-hoc test (Holm-adjusted) found that Baseline was significantly higher (\m{54.92}, \sd{11.10}) in terms of tlx\_mental compared to HUD (\m{45.88}, \sd{9.76}; \padj{0.033}).
#> A Student's t post-hoc test (Holm-adjusted) found that Baseline was significantly higher (\m{54.92}, \sd{11.10}) in terms of tlx\_mental compared to LED (\m{45.21}, \sd{12.51}; \padj{0.015}).
#> A Shapiro--Wilk test on the residuals of the additive model with participant and ConditionID as factors ($n = 72$) indicated no significant deviation from normality ($W = 0.97$, $p = 0.089$); therefore, parametric tests were used.
#> An ANOVA estimation for factorial designs using 'afex' found a significant effect of \ConditionID{} on trust (\F{1.77}{40.77}{7.37}, \p{0.003}, $\omega_{p}^{2}$ = 0.14).
#> A Student's t post-hoc test (Holm-adjusted) found that LED was significantly higher (\m{4.46}, \sd{0.78}) in terms of trust compared to Baseline (\m{3.42}, \sd{1.10}; \padj{0.002}).
battery$summary
#>           dv                                              method statistic
#> 1 tlx_mental ANOVA estimation for factorial designs using 'afex'  5.754671
#> 2      trust ANOVA estimation for factorial designs using 'afex'  7.365422
#>       p.value      p.holm
#> 1 0.006577594 0.006577594
#> 2 0.002635125 0.005270249

Step by step, if you prefer control

1. Check the assumptions

check_normality_by_group(main_df, "ConditionID", "tlx_mental", subject = "Participant")
#> [1] TRUE
#> attr(,"tests")
#>       group  n         W   p_value p_adjusted testable
#> 1 residuals 72 0.9781936 0.2448001  0.2448001     TRUE
#> attr(,"method")
#> [1] "residuals"
#> attr(,"p_adjust")
#> [1] "none"
#> attr(,"untestable")
#> character(0)
#> attr(,"dropped_subjects")
#> character(0)

With subject given, the check tests what a repeated-measures analysis assumes to be normal: the residuals once participant and condition effects are removed (or, for two conditions, the per-participant differences) – not the raw scores per condition, which also carry the spread between participants.

assumption_methods_text() turns the same checks into the sentence reviewers expect next to the choice of test:

assumption_methods_text(main_df, x = "ConditionID", y = "tlx_mental", subject = "Participant")
#> A Shapiro--Wilk test on the residuals of the additive model with participant and ConditionID as factors ($n = 72$) indicated no significant deviation from normality ($W = 0.98$, $p = 0.245$); therefore, parametric tests were used.

2. Plot with automatic test selection

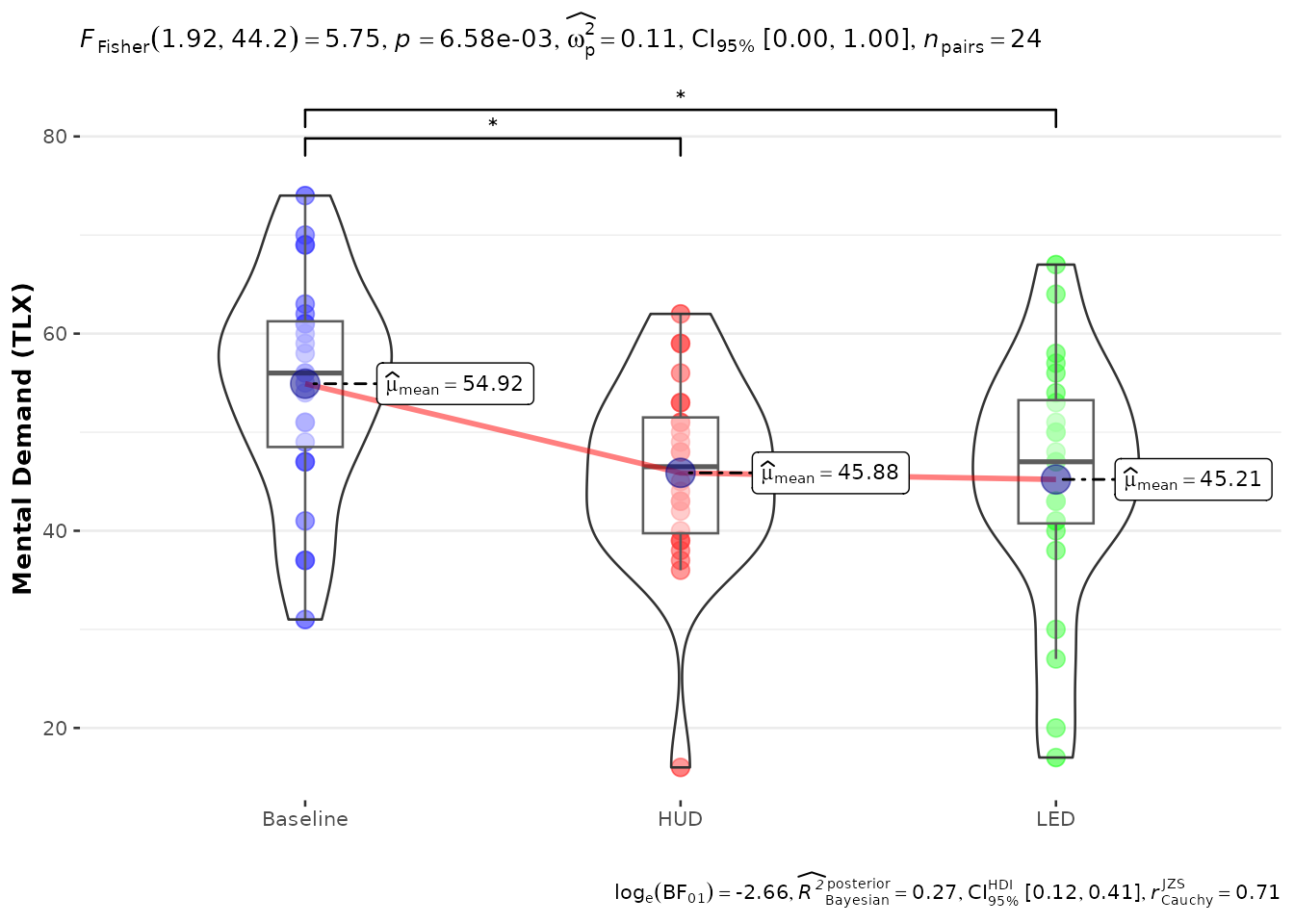

The gg*WithPriorNormalityCheck* wrappers run the normality check and pick the parametric or non-parametric variant for you. The Asterisk versions annotate significant pairwise comparisons with APA-style stars instead of p-values:

plot_within_stats_asterisk(
  data = main_df,
  x = "ConditionID", y = "tlx_mental",
  ylab = "Mental Demand (TLX)",
  xlabels = c("Baseline", "HUD", "LED"),
  subject = "Participant"
)
#> Scale for x is already present.
#> Adding another scale for x, which will replace the existing scale.

(Every function also has a snake_case alias – plot_within_stats_asterisk() is ggwithinstatsWithPriorNormalityCheckAsterisk().)

3. Factorial designs: the Aligned Rank Transform

When there is more than one factor and normality is violated, the standard non-parametric route is the Aligned Rank Transform (ARTool). reportART() turns the ANOVA table into LaTeX sentences, and reportArtCon() reports the pairwise contrasts with rank-biserial effect sizes:

m <- ARTool::art(
  tlx_mental ~ ConditionID + Error(Participant / ConditionID),
  data = main_df
)
reportART(anova(m), dv = "mental demand")
#> The ART found a significant main effect of \ConditionID{} on mental demand (\F{2}{46}{5.56}, \p{0.007}, $\eta_{p}^{2}$ = 0.19, 95\% CI: [0.02, 0.38]).
ac <- ARTool::art.con(m, ~ ConditionID, adjust = "holm")
reportArtCon(
  ac,
  data = main_df, iv = "ConditionID", dv = "tlx_mental",
  paired = TRUE, id = "Participant"
)
#> An ART-C post-hoc test (Holm-adjusted) found that tlx\_mental for the \ConditionID{} Baseline was significantly higher (\mdn{56.00}, \iqr{12.75}) than for HUD (\mdn{46.50}, \iqr{11.75}; \padj{0.016}, \rankbiserial{0.54}) and LED (\mdn{47.00}, \iqr{12.50}; \padj{0.016}, \rankbiserial{0.64}).

4. Descriptives

reportMeanAndSD(main_df, iv = "ConditionID", dv = "tlx_mental")
#> Baseline: \m{54.92}, \sd{11.10}
#> HUD: \m{45.88}, \sd{9.76}
#> LED: \m{45.21}, \sd{12.51}

Into the manuscript

Every reporter accepts sink_to = "results/tlx.tex" to write its sentences to a file your manuscript can \input{} – re-run the analysis and the paper updates itself. Figures go through save_paper_figure(), which uses publication presets (ACM-style single-column 3.33 in, full-width 7 in):

fig_path <- file.path(tempdir(), "tlx-mental.pdf")
save_paper_figure(res$plot, fig_path, columns = 2)
#> Saved figure to '/tmp/RtmptzZK3N/tlx-mental.pdf' (7 x 4.66666666666667 in, base font 9 pt).

The LaTeX macros used by the reporters (\F, \p, \m, …) are defined by latex_preamble() or the shipped colleyRstats.sty; see vignette("overleaf") for the full R-to-Overleaf pipeline, including emit_overleaf(), which bundles the entire analysis into a folder that compiles as-is.
