Generate a Multi-objective Optimization Plot — generateMoboPlot • colleyRstats

This function generates a multi-objective optimization plot using ggplot2. The plot visualizes the relationship between the x and y variables, grouping and coloring by a fill variable, with the option to customize legend position, labels, and annotation of sampling and optimization phases.

Usage

generateMoboPlot(
  data,
  x,
  y,
  fillColourGroup = "ConditionID",
  ytext,
  legendPos = c(0.65, 0.85),
  numberSamplingSteps = 5,
  labelPosFormulaY = "top",
  verticalLinePosY = 0.75
)

plot_mobo(
  data,
  x,
  y,
  fillColourGroup = "ConditionID",
  ytext,
  legendPos = c(0.65, 0.85),
  numberSamplingSteps = 5,
  labelPosFormulaY = "top",
  verticalLinePosY = 0.75
)

Arguments

data: A data frame containing the data to be plotted.
x: A string representing the column name in data to be used for the x-axis. Can be either numeric or factor.
y: A string representing the column name in data to be used for the y-axis. This should be a numeric variable.
fillColourGroup: A string representing the column name in data that defines the fill color grouping for the plot. Default is "ConditionID".
ytext: A custom label for the y-axis. If not provided, the y-axis label will be the title-cased version of y.
legendPos: A numeric vector of length 2 specifying the position of the legend inside the plot. Default is c(0.65, 0.85).
numberSamplingSteps: An integer specifying the number of initial sampling steps before the optimization phase begins. Default is 5.
labelPosFormulaY: A string specifying the vertical position of the polynomial equation label in the plot. Acceptable values are "top", "center", or "bottom". Default is "top".
verticalLinePosY: A numeric value of the y-coordinate where the "sampling" and "optimization" line should be drawn.

Value

A ggplot object representing the multi-objective optimization plot, ready to be rendered.

Naming

plot_mobo() is the spelling used throughout the documentation and the one to prefer in new code: the report_* / plot_* / check_* prefixes make the API discoverable through autocomplete.

generateMoboPlot() is the original name. Both names refer to the same function object, so they are entirely interchangeable; the original remains fully supported and is not scheduled for removal, and existing scripts keep working unchanged.

Examples

library(ggplot2)
library(ggpmisc)
#> Loading required package: ggpp
#>
#> Attaching package: ‘ggpp’
#> The following object is masked from ‘package:ggplot2’:
#>
#>     annotate

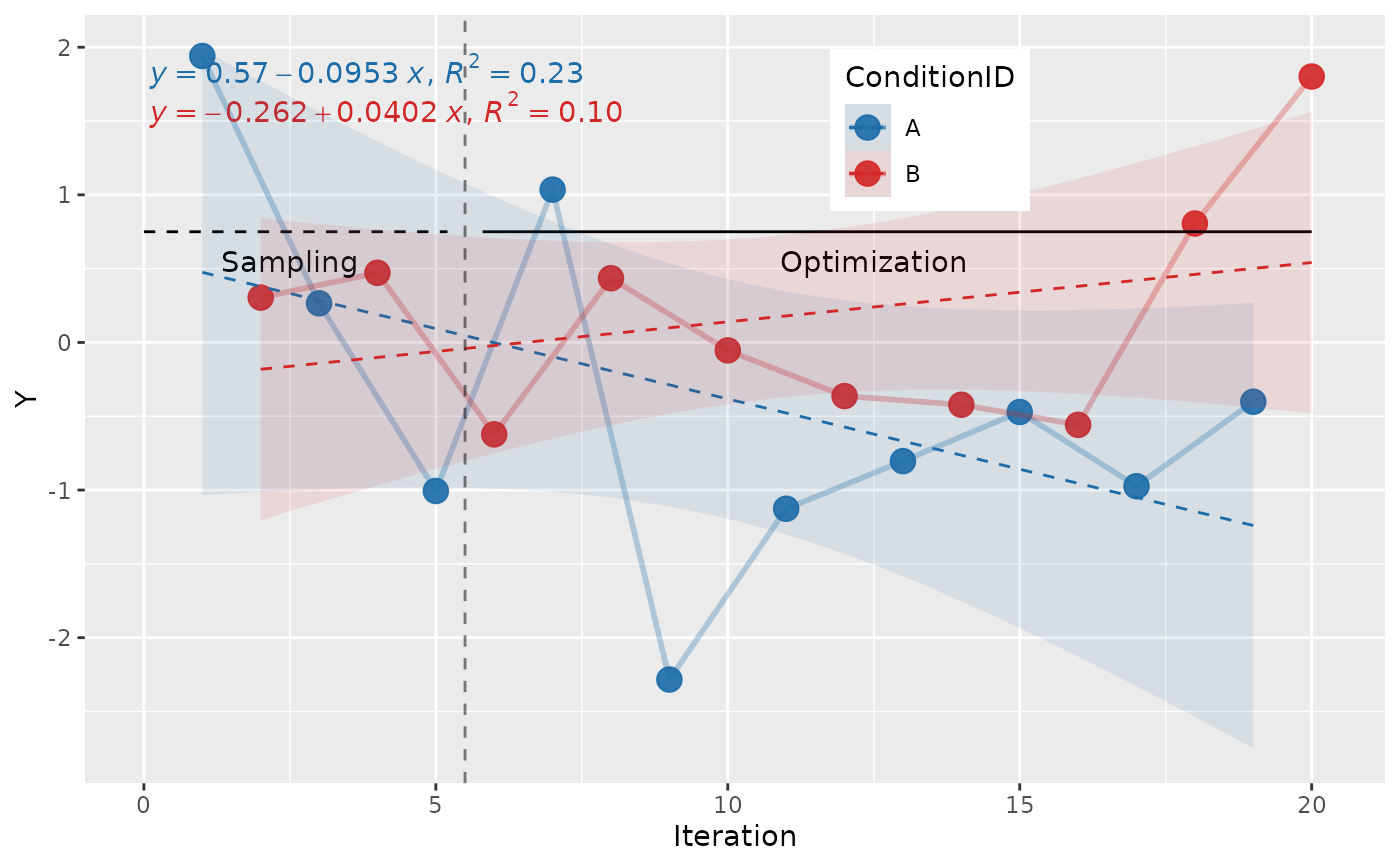

# Example with numeric x-axis
df <- data.frame(
  x = 1:20,
  y = rnorm(20),
  ConditionID = rep(c("A", "B"), 10)
)
generateMoboPlot(df, x = "x", y = "y")

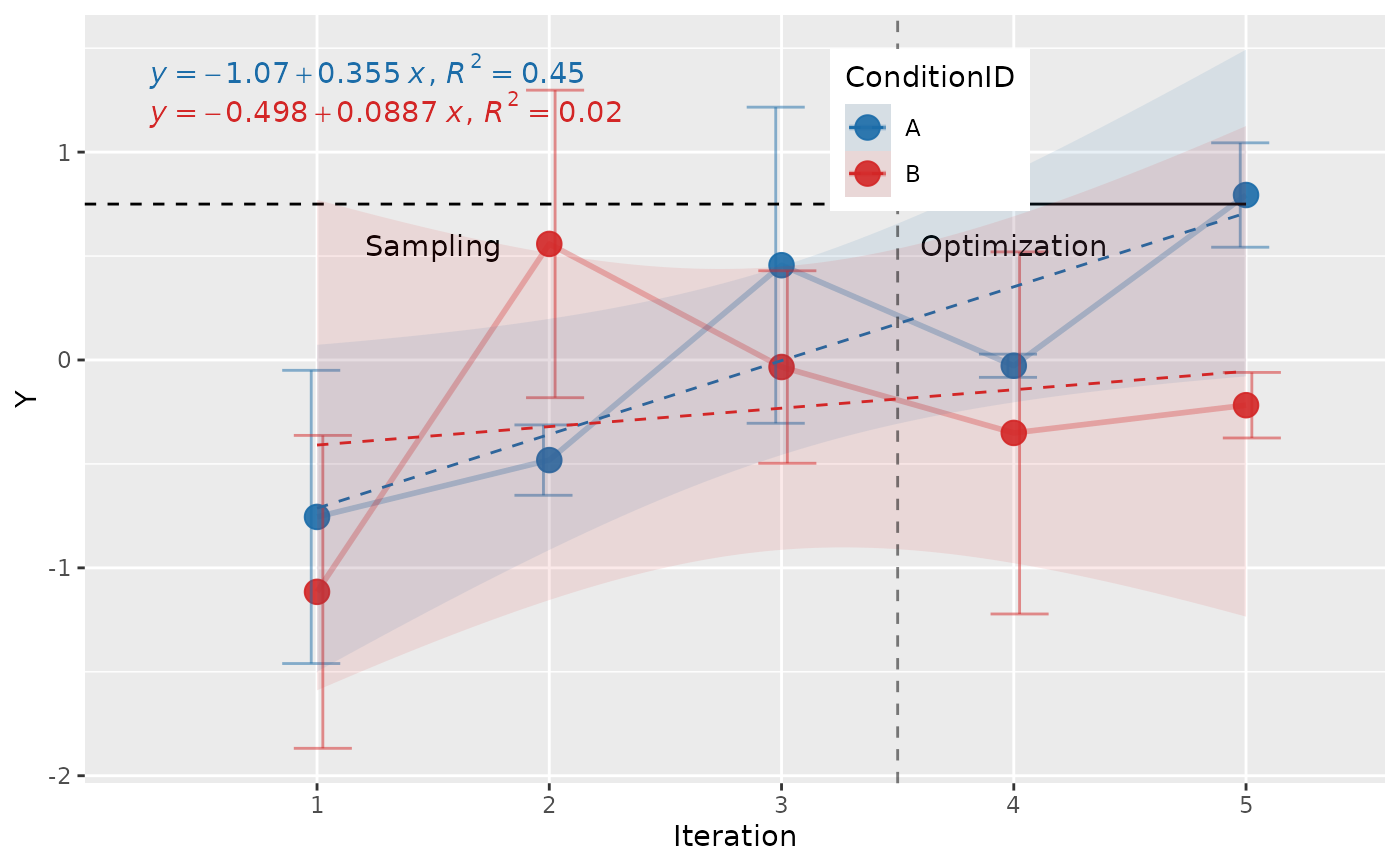

# Example with factor x-axis
df <- data.frame(
  x = factor(rep(1:5, each = 4)),
  y = rnorm(20),
  ConditionID = rep(c("A", "B"), 10)
)
generateMoboPlot(df, x = "x", y = "y", numberSamplingSteps = 3)
